Structural Components
Side beams, plate packs, columns and cylinders made to your frame.
Side beams, plate pack rails, columns and closing cylinders set how square the press closes and how long the plates survive. We make them to your frame, including frames that were built to a drawing nobody kept.
- Scope
- beams · rails · columns · cylinders
- Made to
- your frame, not a model list
- Finish
- machined and painted or galvanised
Ask about this part
Say what you need made and send it straight to the engineering team — on WhatsApp, by email, or through the form with your words already in it. A photo and a few dimensions are enough to start.
Hello, I would like to ask about a made-to-order part.
Send on WhatsApp Send by email Use the form
Drawings and photographs travel with the form: PDF, JPG, PNG, WebP, HEIC or ZIP, up to 10 MB. Every message is read by the engineering team, not a call centre.
Product overview
A press that closes unevenly usually has a tired frame rather than tired plates: a bowed side beam, a worn rail or a scored cylinder bore. Measuring the frame shows which of the three has gone.
We supply the structural parts individually, so a repair does not become a rebuild — and where the frame is being extended for more plates, the new section is made to match the old.
Key features & options
-
Measured, not assumed
The frame is checked before anything is made — bows and wear decide the scope.
-
Made to the old frame
New sections match the existing press so the pack still closes square.
-
Part-by-part supply
Replace the beam, the rail or the cylinder without a rebuild.
-
Extension work
Frames extended for more plates keep their alignment.
Technical specifications
Typical range for this class of equipment — the figures for your unit are fixed in the quotation.

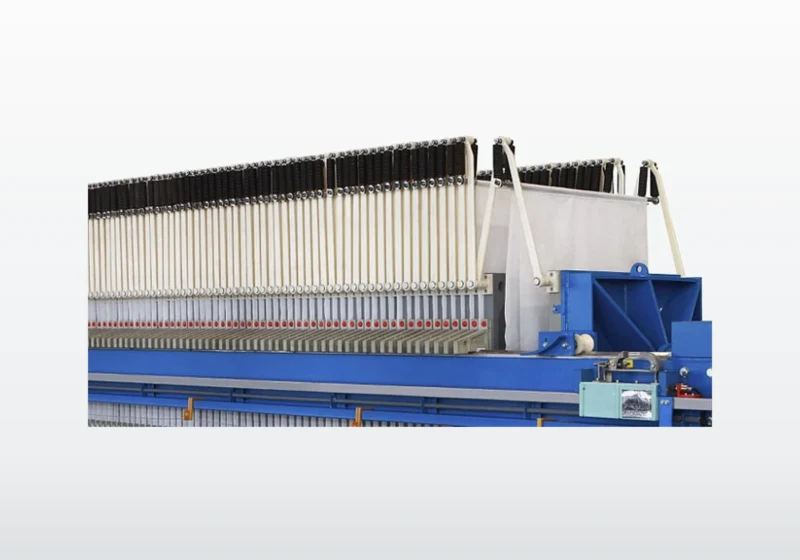

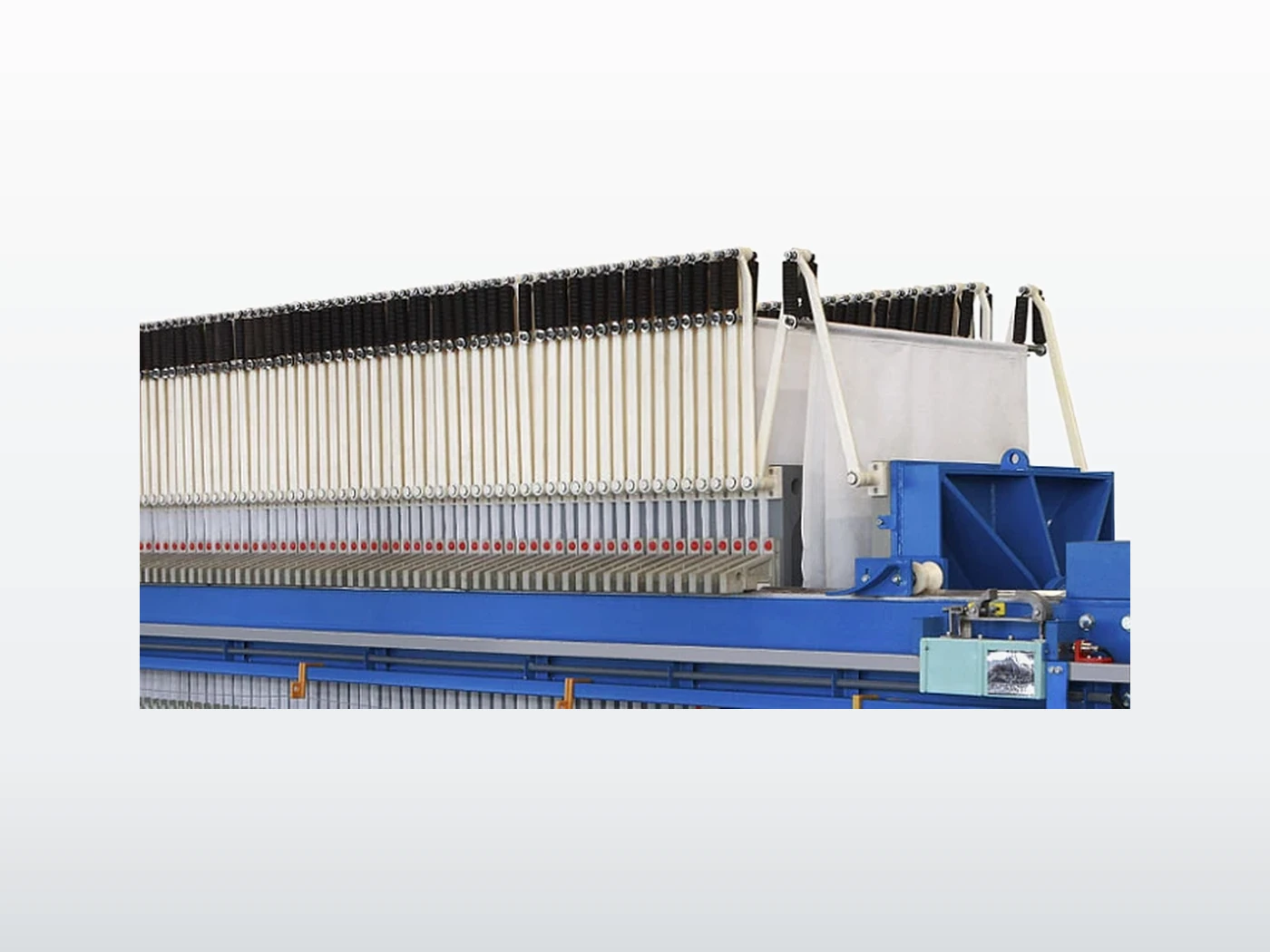

| Side beams | fabricated or rolled, machined faces |
|---|---|
| Plate pack rails | for the plate size and the handle type on your press |
| Columns | machined, with or without the cylinder assembly |
| Closing cylinder | bored and honed to the closing force |
| Finish | machined, painted or galvanised |
| Supply | single part or a full frame section |
Product images
Related solutions
Construction Sludge Dewatering
Excavation, diaphragm wall and wash-water sludge, reduced to a transportable cake.
Bentonite Slurry Dewatering
Turning spent bentonite suspensions into stackable cake and reusable water.
Frequently asked questions
From the way the cake releases and the plate wear pattern. Measuring the frame confirms it.
Yes, where the frame and closing unit have the capacity for more plates.
Drawings make it quicker, but a measured frame is enough for most of this work.
