Filter Plates
Chamber and membrane plates machined to your plate size, chamber depth and port layout.
The plate sets the chamber depth, the cycle time and how long the cloth lasts. We machine chamber and membrane plates to your plate size, port layout and handle arrangement — including older frames where the worn plate itself is the only reference left.
- Plate size
- to your frame
- Wall type
- chamber / membrane
- Material
- PP · reinforced PP · EPDM or TPE
Ask about this part
Say what you need made and send it straight to the engineering team — on WhatsApp, by email, or through the form with your words already in it. A photo and a few dimensions are enough to start.
Hello, I would like to ask about a made-to-order part.
Send on WhatsApp Send by email Use the form
Drawings and photographs travel with the form: PDF, JPG, PNG, WebP, HEIC or ZIP, up to 10 MB. Every message is read by the engineering team, not a call centre.
Product overview
A plate is a wearing part. Once it cracks at the feed port or the sealing face is scored, the press starts weeping and the cycle time drifts. A replacement set puts the machine back to work without touching the frame, the closing unit or the hydraulics.
There is no catalogue substitution to make. Plate size, chamber depth, feed and filtrate ports, handle type and membrane grade are all taken from the plate you send or from the drawing that came with the frame.
Key features & options
-
Made to your plate
We work from the plate you send or from the original drawing, not from a stock list.
-
Chamber or membrane

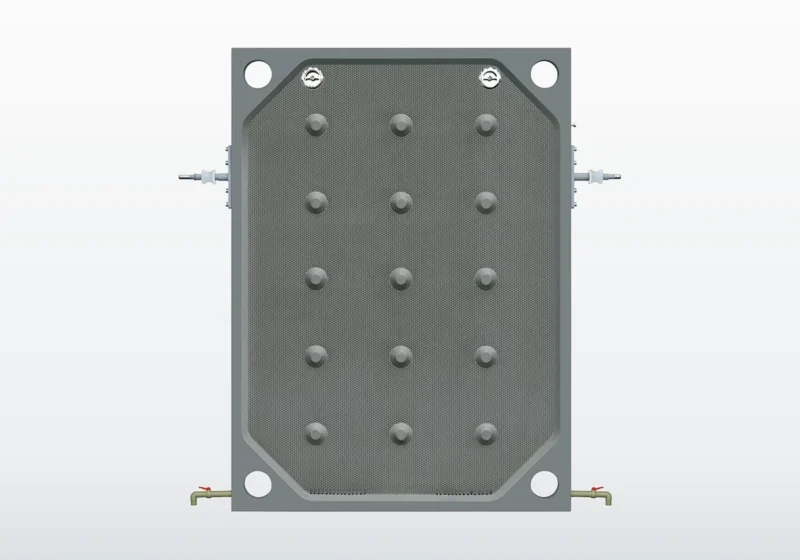

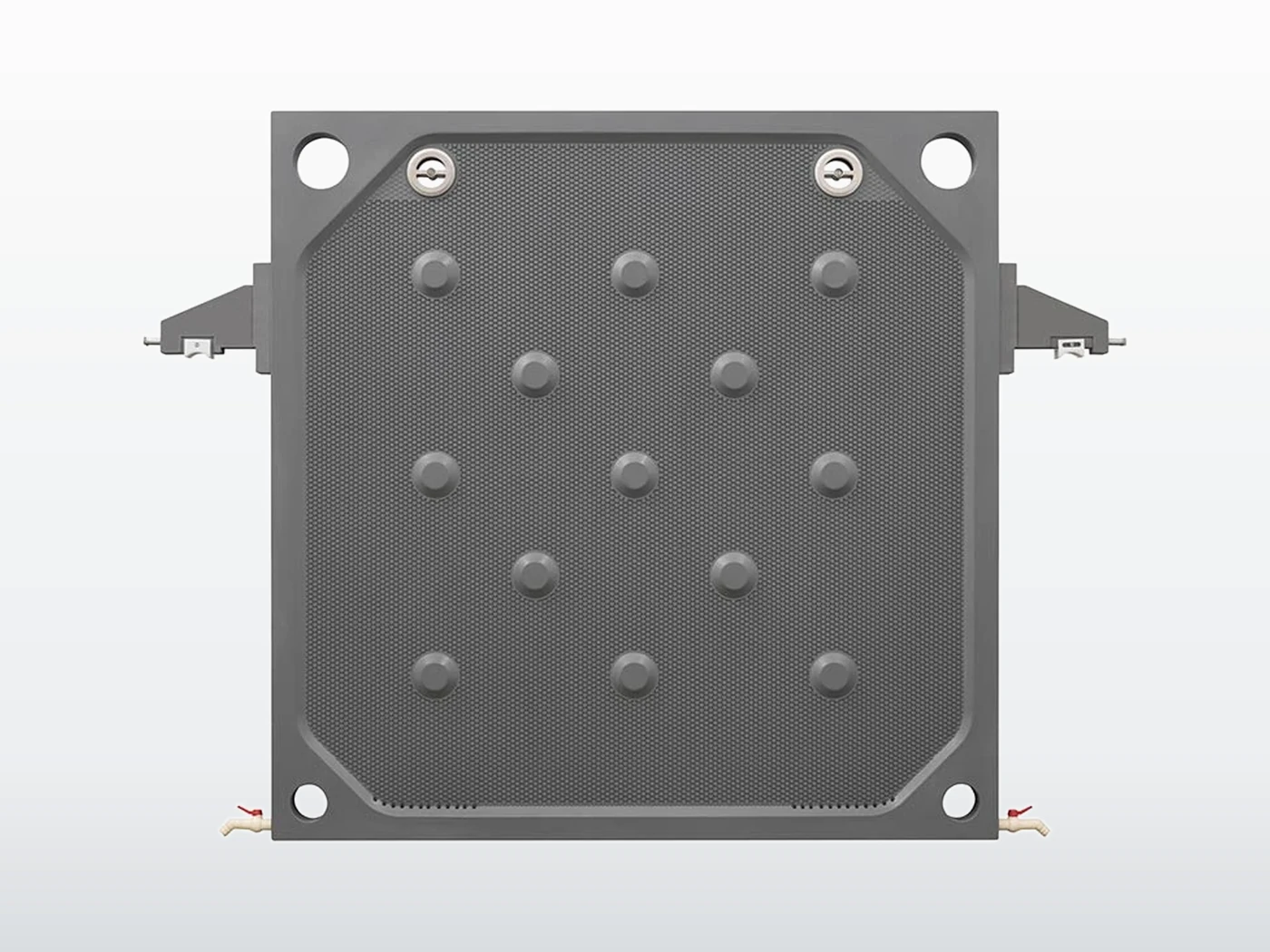

Chamber plates where the chamber carries the cake; membrane plates where it has to come out drier.
-
Ports cut to your drawing
Feed, filtrate and washing ports machined to match the manifold on your press.
-
Membrane grade matched to the duty
EPDM or TPE chosen for the temperature, the pH and the cycle count you run.
-
A set that closes evenly
A full stack is machined together, so the plates seal against each other from the first cycle.
Technical specifications
Typical range for this class of equipment — the figures for your unit are fixed in the quotation.
| Plate size | to your drawing — 470 to 2000 mm typical |
|---|---|
| Chamber depth | 25 – 40 mm, set by the cake thickness |
| Working pressure | 0.6 – 1.6 MPa |
| Squeeze pressure | 1.0 – 2.5 MPa (membrane plates) |
| Membrane material | EPDM or TPE on a polypropylene carrier |
| Plate material | virgin or reinforced polypropylene |
| Ports | center feed, corner feed or to your drawing |
| Handles | integrated, bolt-on or to your drawing |
Product images
Related solutions
Construction Sludge Dewatering
Excavation, diaphragm wall and wash-water sludge, reduced to a transportable cake.
Bentonite Slurry Dewatering
Turning spent bentonite suspensions into stackable cake and reusable water.
Frequently asked questions
Yes — that is most of this work. Send one plate or the original drawing and we match it, ports and handles included.
From the cake thickness you need. Deeper chambers carry more cake per cycle but ask for more closing force.
A set fills the frame. Tell us the model or the plate count and the quotation covers the full stack.
Tell us about your slurry
Every slurry is different. Send us your slurry characteristics and project requirements so our engineering team can evaluate a suitable dewatering solution.
Filter Plates
Tell us about your slurry
Every slurry is different. Send us your slurry characteristics and project requirements so our engineering team can evaluate a suitable dewatering solution.
- Process evaluation based on real slurry data
- Equipment and layout proposal for your capacity
- Cake moisture and water recovery targets
