Industrial Sludge Dewatering
Process and wastewater sludge dewatering, with the filtration cycle matched to the sludge chemistry.
Industrial sludge is defined by its chemistry rather than its solids. The cycle, cloth and materials follow from that.
- Typical capacity
- 5 – 80 m³/h
- Sludge
- Process / wastewater
- Target cake
- 22 – 40 % dry solids
What the plant has to do

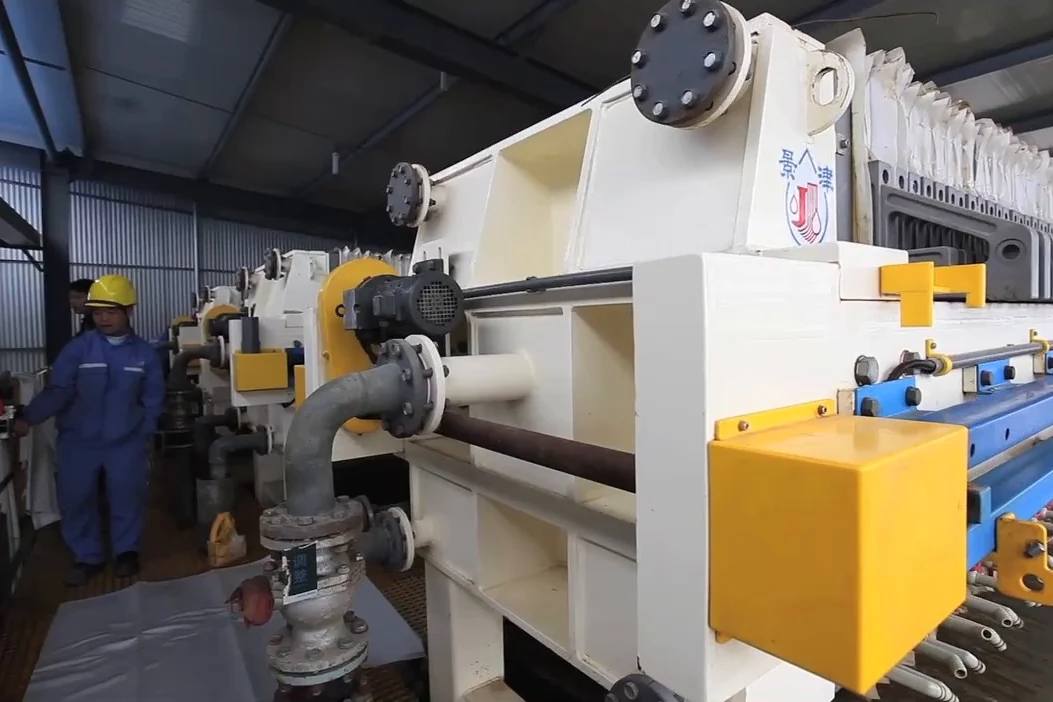

The press runs a programmed cycle in the plant hall, with the cake conveyed to a skip and the filtrate passed to the next treatment stage.
Recommended treatment process
Each stage is selected around the slurry and the disposal route.
- 01
Sludge storage
Storage is sized so the press runs on a steady cycle.
- 02
Conditioning
Dosing and mixing are set from the sludge chemistry.
- 03
Filtration
Plate pack, cloth and pressure are chosen around the solids.
- 04
Squeeze
Membrane plates squeeze the cake where drier cake pays for itself.
- 05
Discharge
Cake drops to a conveyor or skip; filtrate goes to the next process stage.
Recommended equipment
Equipment is configured around the capacity, solids concentration and target cake moisture of your project.
Membrane Filter Press
Squeeze dewatering for higher dry solids and shorter cycles.
- Filtration area
- 10 – 200 m²
- Filtration pressure
- 0.6 – 1.6 MPa
- Capacity range
- 5 – 100 m³/h slurry feed
Automatic Filter Press
Automated filtration cycles for continuous industrial operation.
- Filtration area
- 10 – 200 m²
- Filtration pressure
- 0.6 – 1.6 MPa
- Capacity range
- 5 – 100 m³/h slurry feed
Operating considerations
Chemistry
A jar test on the real sludge sets the dose, the cloth and the cycle time.
Continuous operation
Automatic plate shifting keeps one operator covering several presses.
Corrosion
Wetted parts are selected for the pH and chloride content of the sludge.
Frequently asked questions
The cake formation rate of your sludge, measured in the filtration test.
The automatic configuration runs a programmed sequence with one operator per shift.
Tell us about your slurry
Every slurry is different. Send us your slurry characteristics and project requirements so our engineering team can evaluate a suitable dewatering solution.
