Industrial Sludge Dewatering
Process and wastewater sludge dewatering, with the filtration cycle matched to the sludge chemistry.

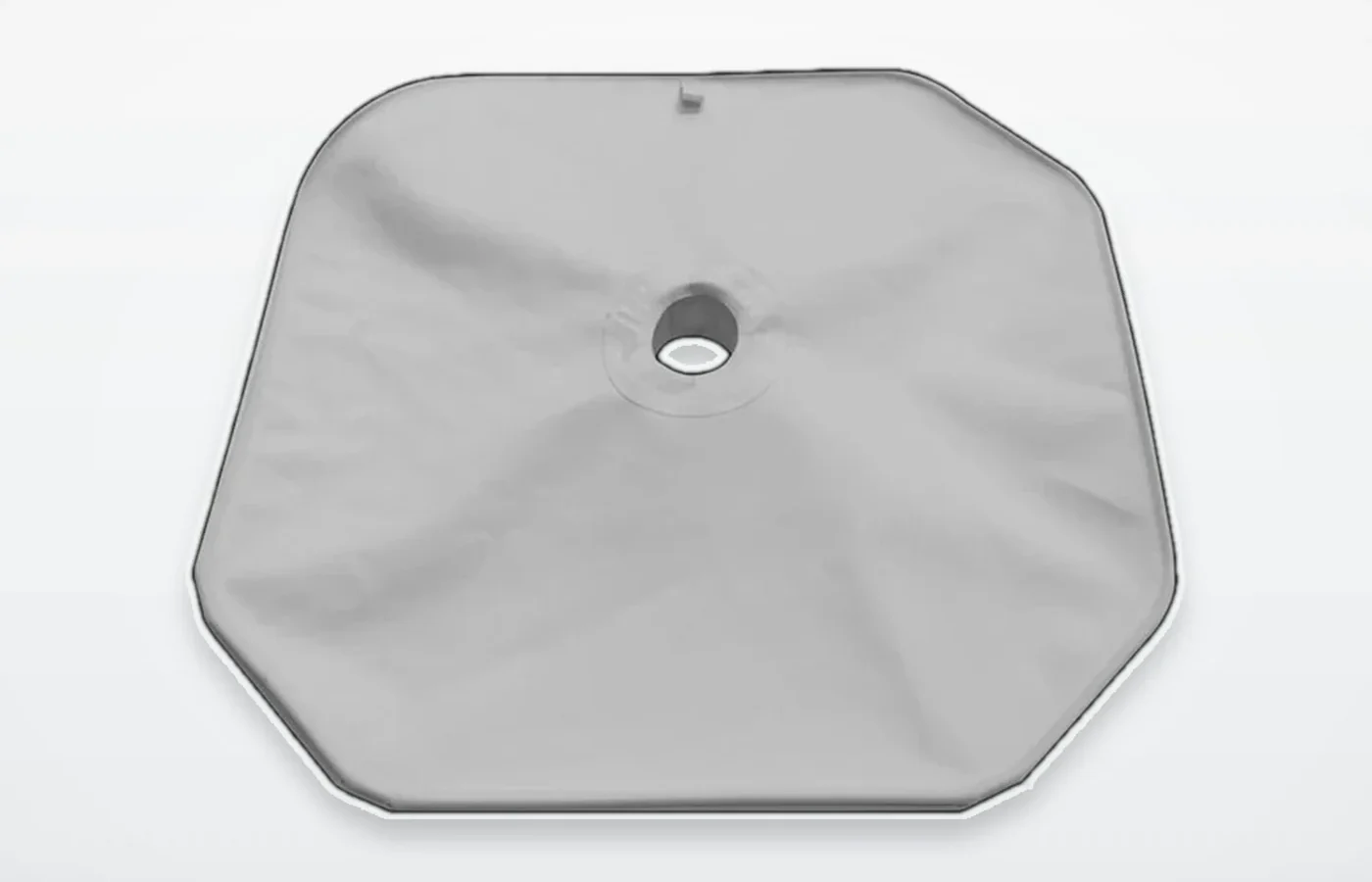

Filter Cloth
Cloth cut, sewn and fitted to your plate size and slurry chemistry.
The cloth sets how fast the water passes and how cleanly the cake releases. We cut and sew it to your plate size, port layout and fixing method, in the weave your slurry needs rather than the weave that happens to be in stock.
- Supply
- cut and sewn to your plate
- Fixing
- grommet, drawstring or to your drawing
- Weave
- selected from the slurry test
Ask about this part
Say what you need made and send it straight to the engineering team — on WhatsApp, by email, or through the form with your words already in it. A photo and a few dimensions are enough to start.
Hello, I would like to ask about a made-to-order part.
Send on WhatsApp Send by email Use the form
Drawings and photographs travel with the form: PDF, JPG, PNG, WebP, HEIC or ZIP, up to 10 MB. Every message is read by the engineering team, not a call centre.
Product overview
Two presses running the same slurry can need different cloths. One blinds and asks for a coarser weave; the other releases badly and wants a smoother surface. The choice follows the solids, the chemistry and the cycle time, not a catalogue page.
We supply a single piece for a repair or a full set for a plate change — cut and sewn to your plate, and delivered in the fixing method you already use.
Key features & options
-
Cut to your plate
The size comes from the plate you send, port cut-outs included.
-
Weave matched to the slurry
Chosen so the cake releases cleanly and the cloth does not blind.
-
One piece or a full set
A repair and a plate change are quoted the same way, per piece or per set.
-
Fitted on site
We can fit the first set and show your team how the change is made.
Technical specifications
Typical range for this class of equipment — the figures for your unit are fixed in the quotation.
| Weave | plain, twill or satin — mono or multifilament |
|---|---|
| Weight | 350 – 600 g/m² typical |
| Air permeability | matched to the cake release and cycle time |
| Fixing | grommets, drawstring, hook-and-loop or to your drawing |
| Seam | double stitched, folded edge |
| Temperature | selected for the duty |
| Supply | per piece or per set |

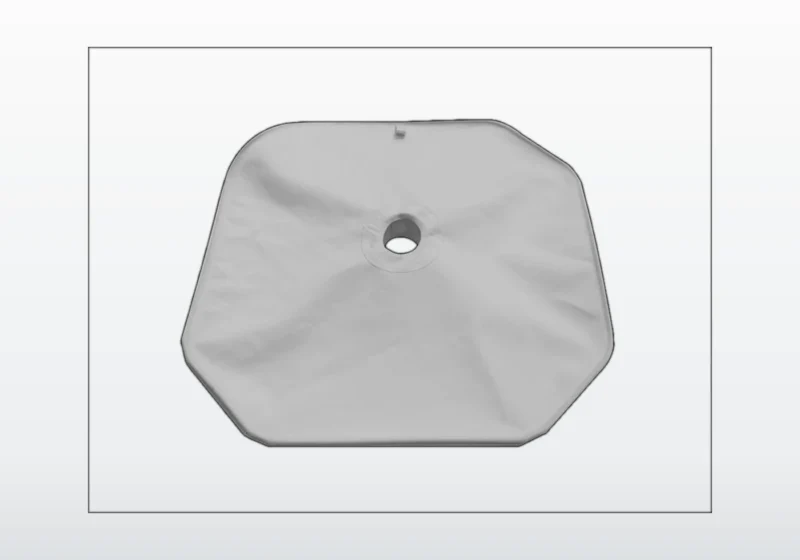

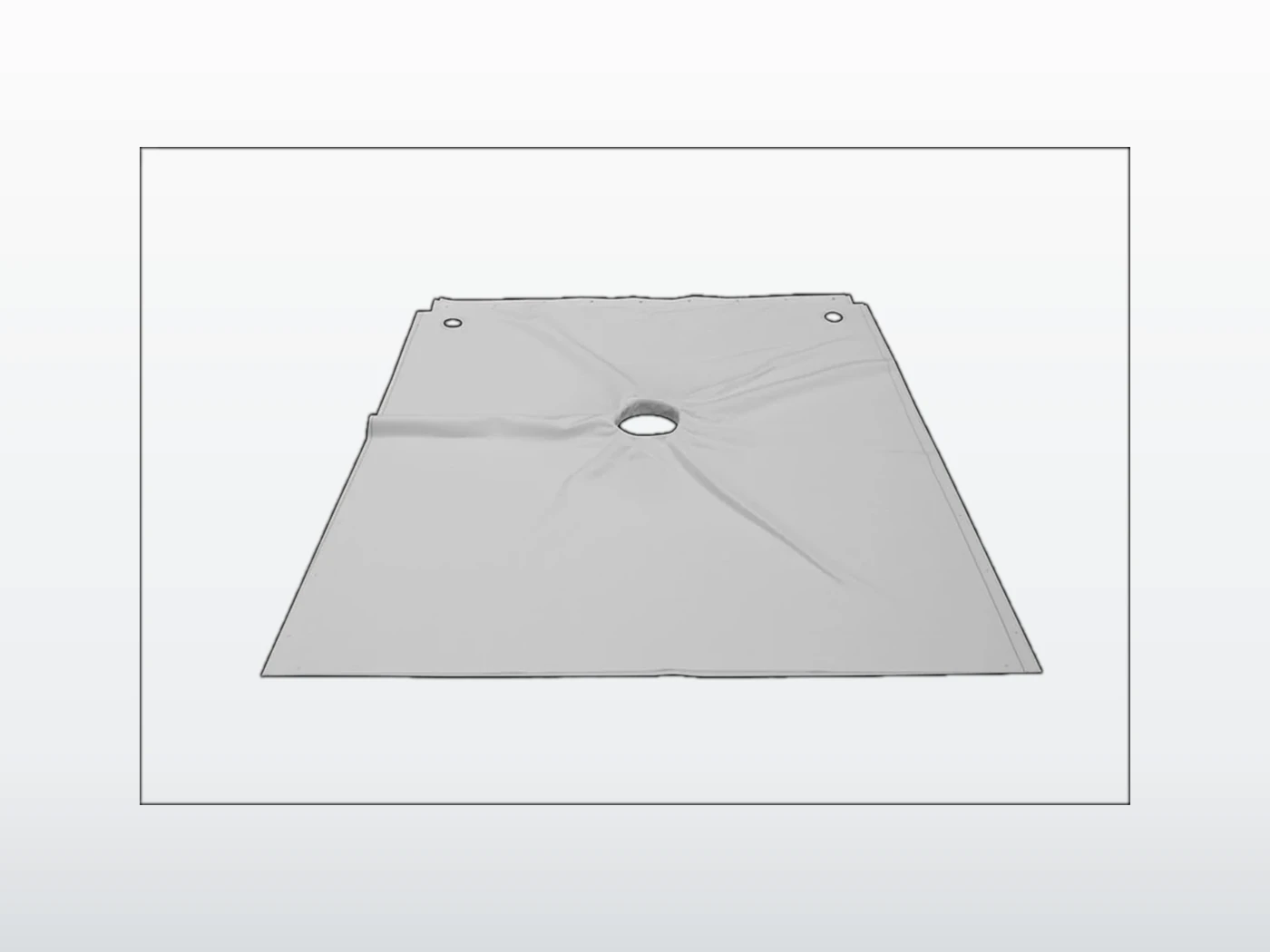

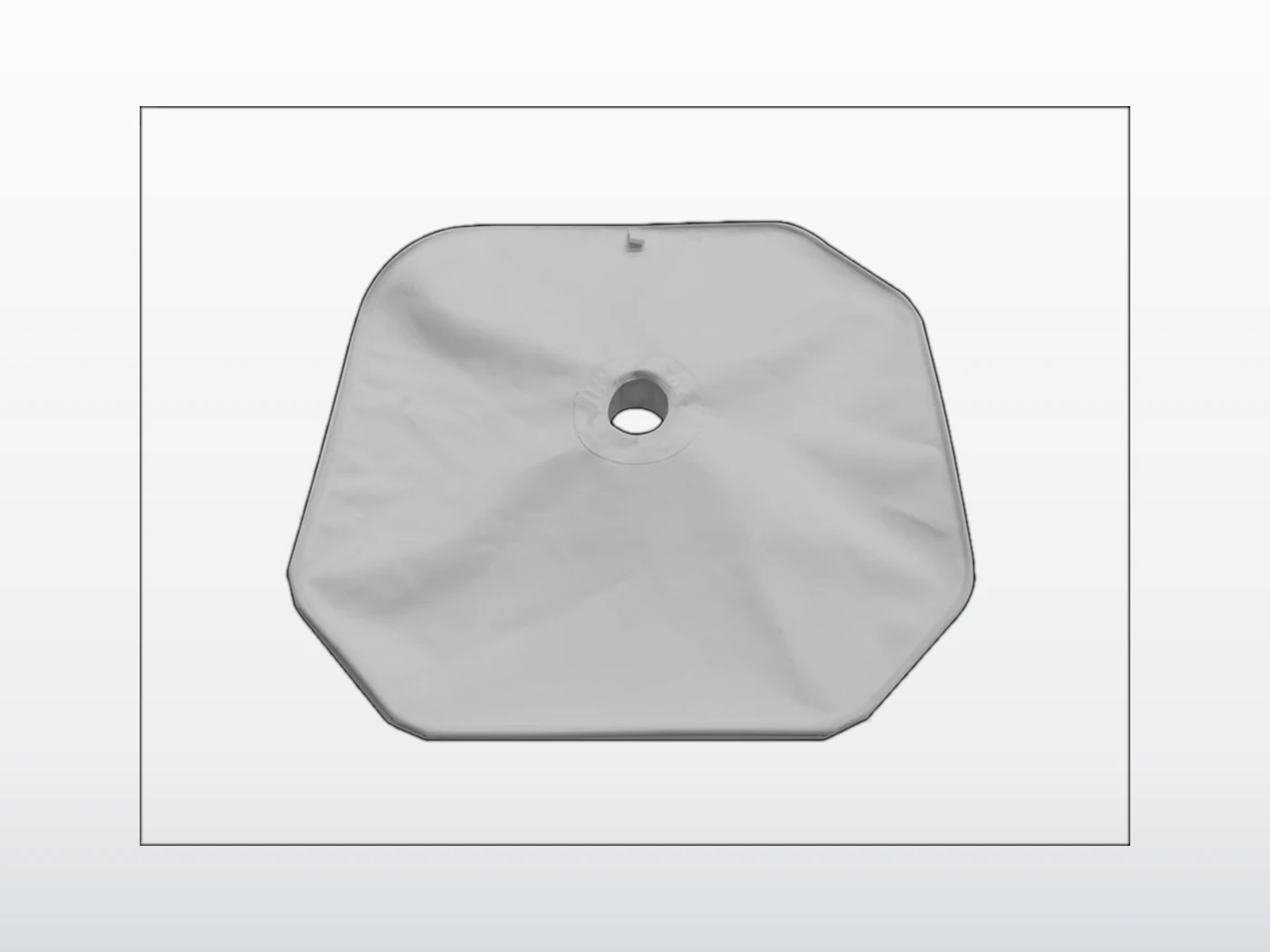

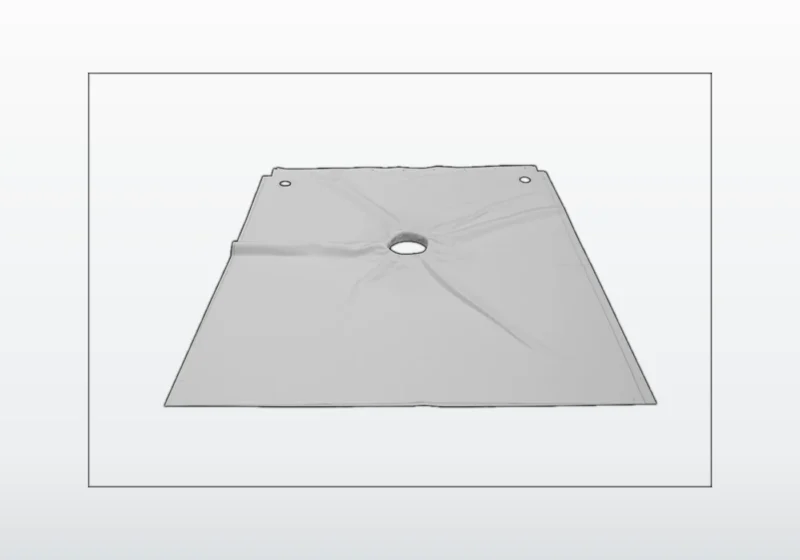

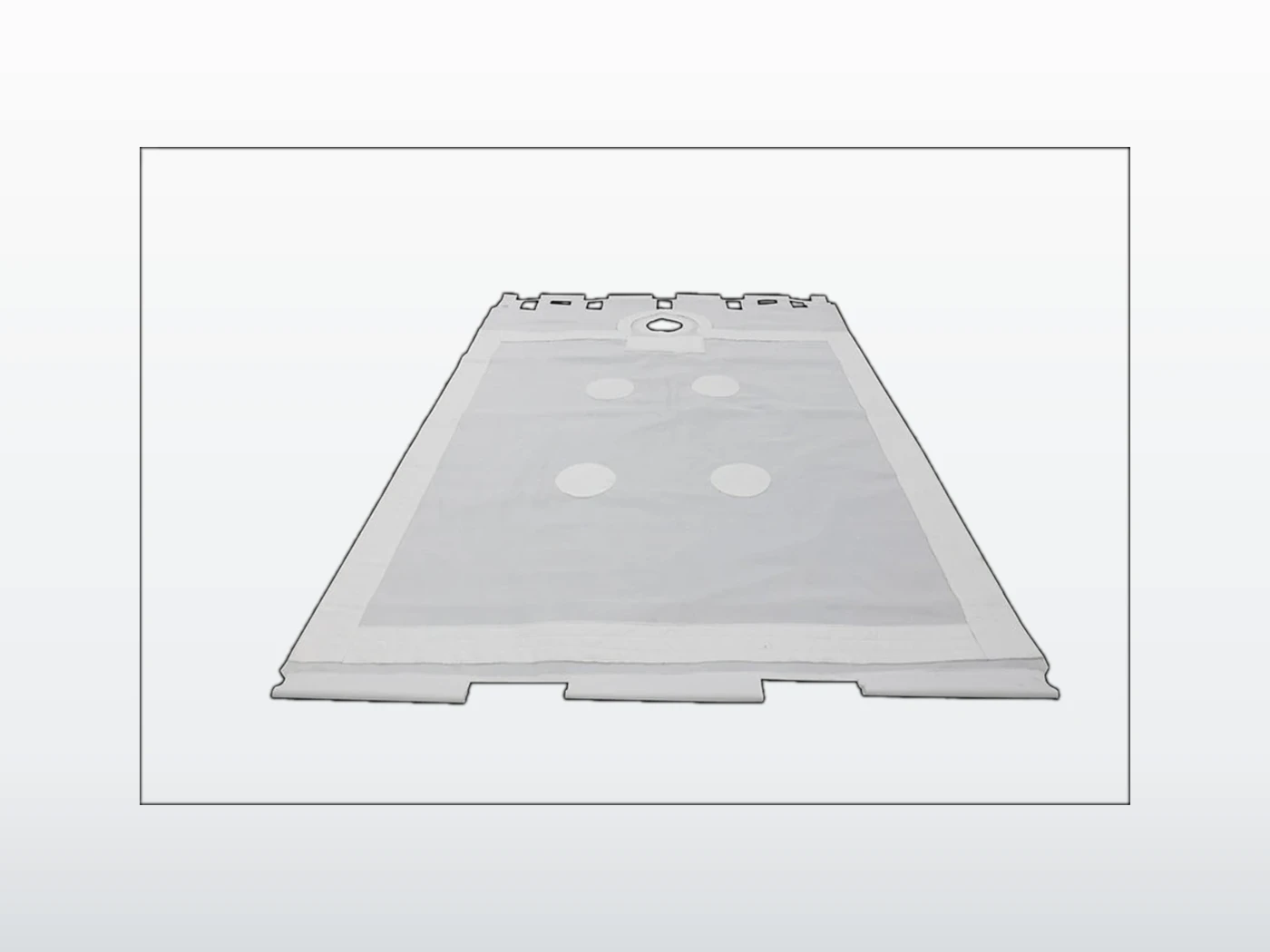

Product images
Related solutions
Construction Sludge Dewatering
Excavation, diaphragm wall and wash-water sludge, reduced to a transportable cake.
Bentonite Slurry Dewatering
Turning spent bentonite suspensions into stackable cake and reusable water.
Frequently asked questions
It follows the cycle count and the slurry. Blinding and poor cake release are the usual signals.
No — keep one set identical, so the chambers fill and release evenly.
Yes, as long as we have the plate size. Send one plate or its drawing and the cloth is cut to it.
