Hydraulic Power Units
Closing and squeeze power packs sized to the closing force your frame needs.
The power unit holds the stack shut against the feed pressure and drives the squeeze on a membrane press. Under-size it and the press closes slowly and weeps between the plates; over-size it and the oil runs hot for nothing.
- Function
- closing / squeeze
- Sizing
- from the closing force
- Build
- to the space on site
Ask about this part
Say what you need made and send it straight to the engineering team — on WhatsApp, by email, or through the form with your words already in it. A photo and a few dimensions are enough to start.
Hello, I would like to ask about a made-to-order part.
Send on WhatsApp Send by email Use the form
Drawings and photographs travel with the form: PDF, JPG, PNG, WebP, HEIC or ZIP, up to 10 MB. Every message is read by the engineering team, not a call centre.
Product overview

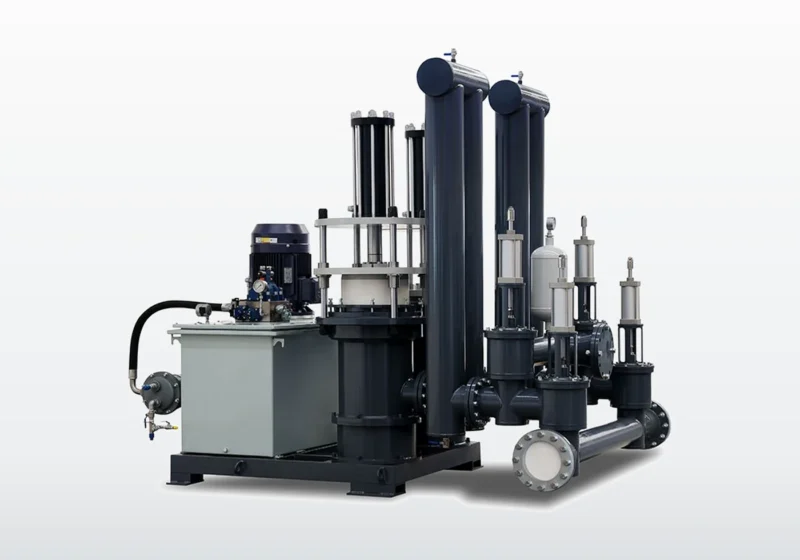

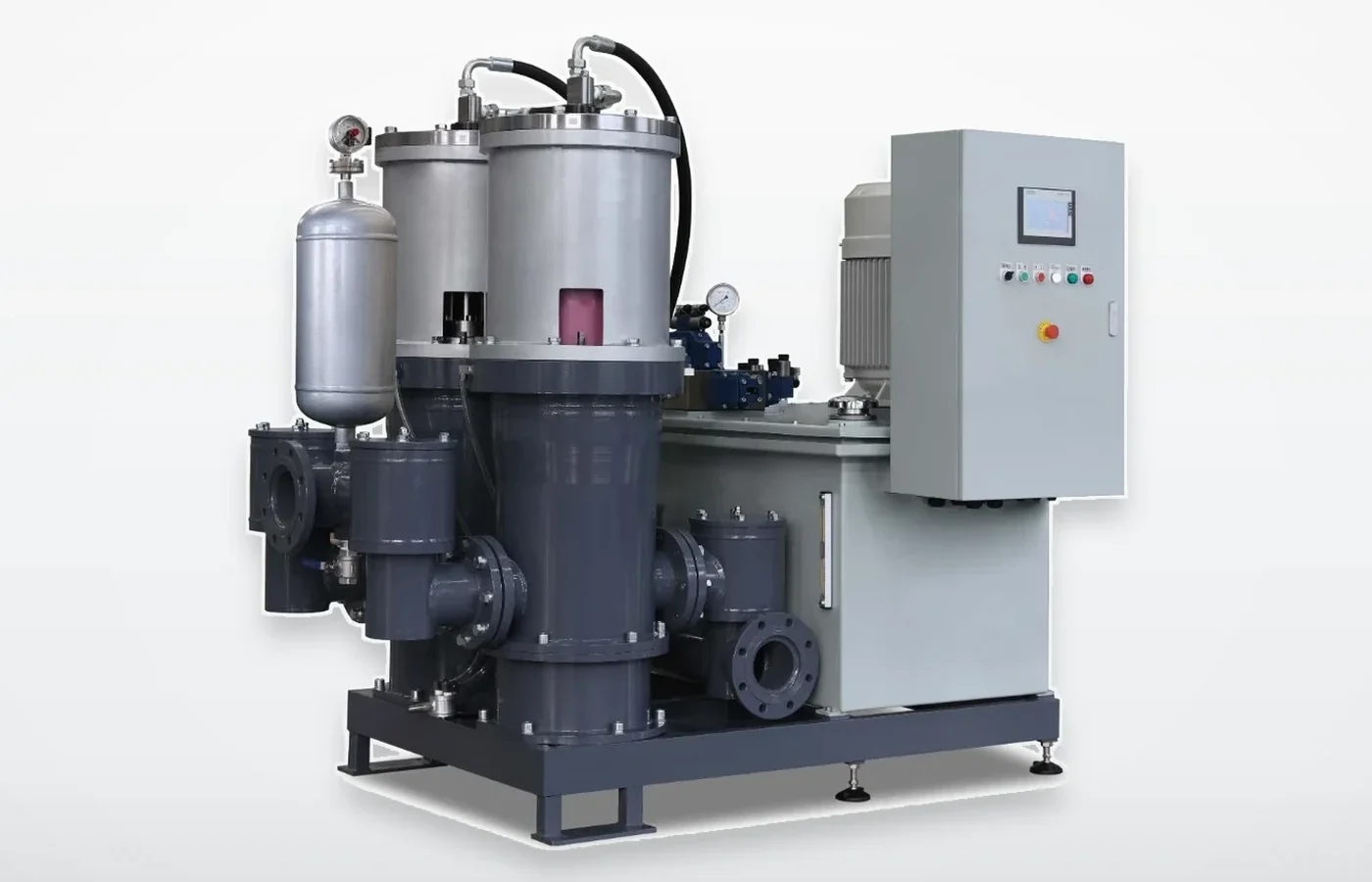

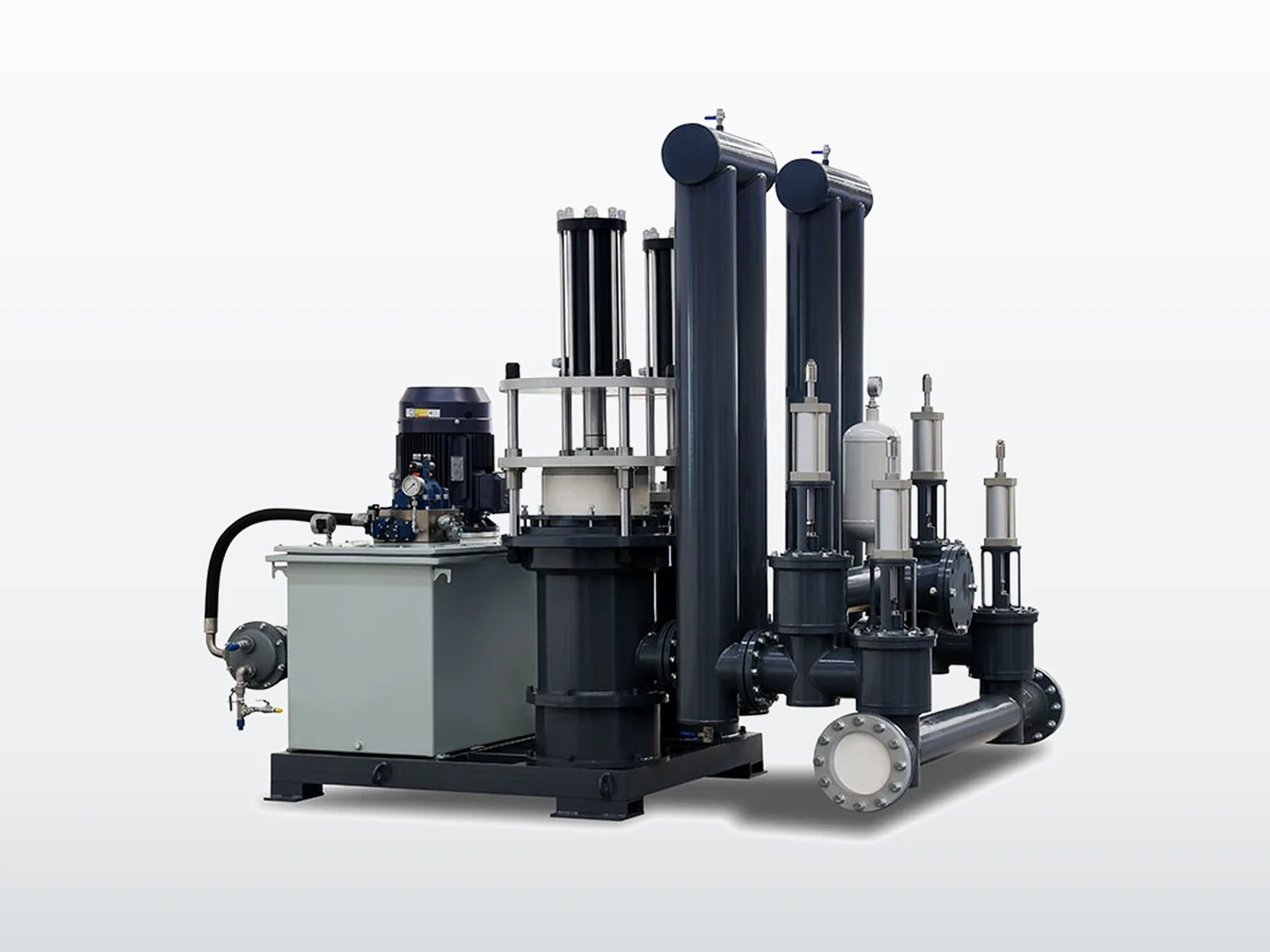

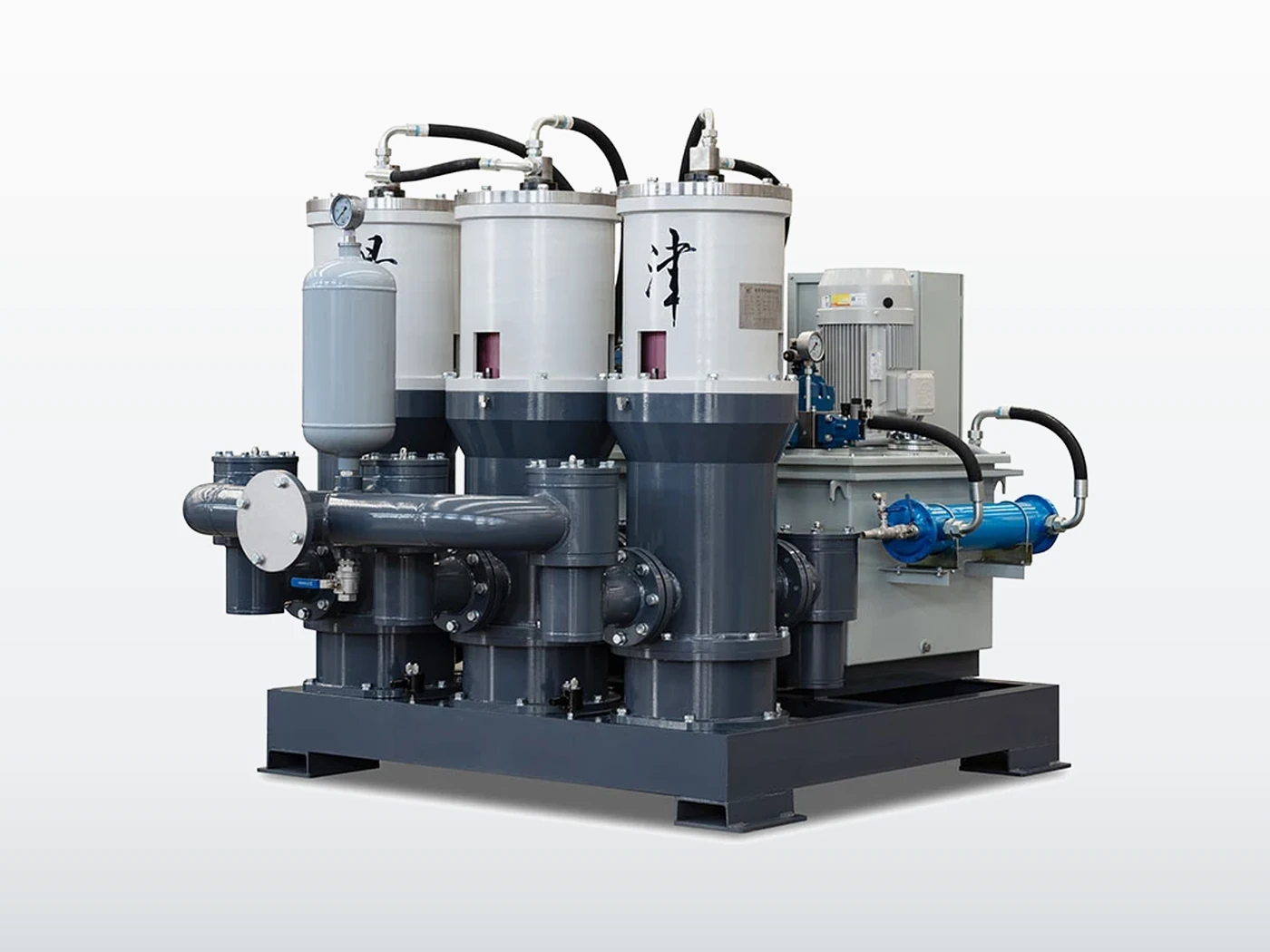

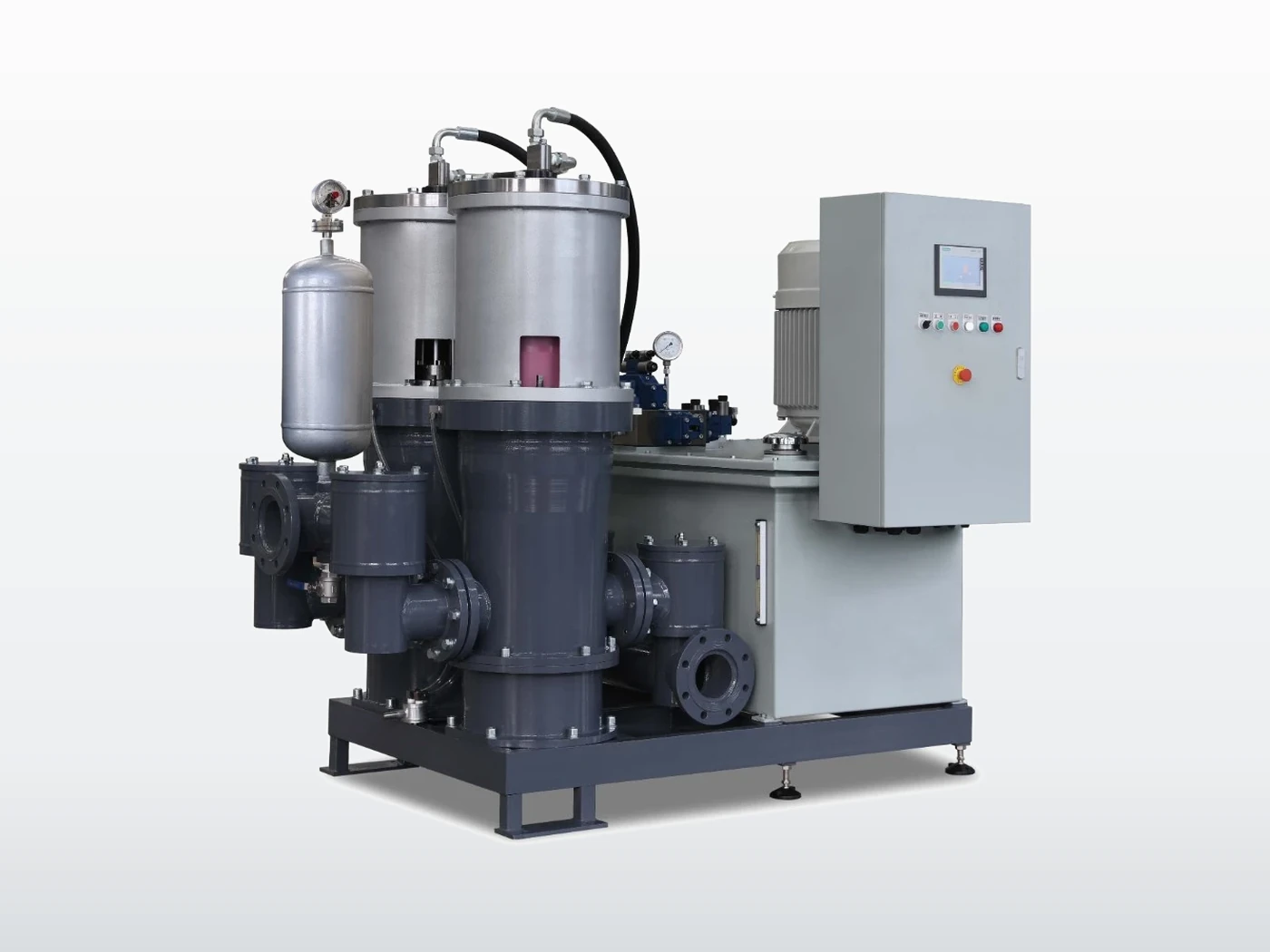

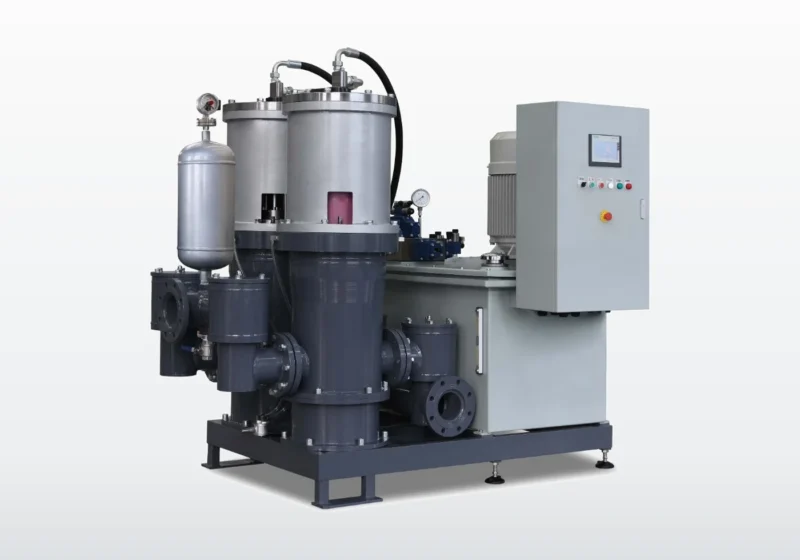

The unit is sized from the closing force the frame needs and the cycle time you want, then built to fit the space you have — on a skid beside the press, or on the frame itself.
It is also the usual upgrade path for an older press with a pump that is noisy, slow or leaking: the frame and the plates stay, the power pack and its control are replaced.
Key features & options
-
Sized from the closing force
Not from a stock pump size — the frame tells us what the unit has to hold.
-
Duty/standby option
One pump runs, one stands by, so a seal failure does not stop the plant.
-
Built to the space
Skid-mounted, on the frame or inside the plant container.
-
Retrofit friendly
Keeps the frame and the plates and replaces the power side only.
-
Oil and filtration
Oil grade and filtration chosen for the ambient conditions on your site.
Technical specifications
Typical range for this class of equipment — the figures for your unit are fixed in the quotation.
| Working pressure | 25 – 30 MPa typical |
|---|---|
| Closing force | sized to the frame — up to 2500 kN typical |
| Pump | gear, piston or duty/standby pair |
| Tank | sized for the cycle and the ambient temperature |
| Cooling | air or water, where the duty needs it |
| Control | local panel, PLC or integrated with the press |
| Mounting | skid, frame-mounted or containerised |
Product images
Related solutions
Construction Sludge Dewatering
Excavation, diaphragm wall and wash-water sludge, reduced to a transportable cake.
Bentonite Slurry Dewatering
Turning spent bentonite suspensions into stackable cake and reusable water.
Frequently asked questions
Yes — that is a common retrofit. The frame, the plates and the closing cylinder stay where they are.
It follows from the plate size and the working pressure. Send the frame details and we size the unit from them.
Yes. Pumps, valves and seals are supplied as spares, and we can quote a duty/standby set with the unit.
