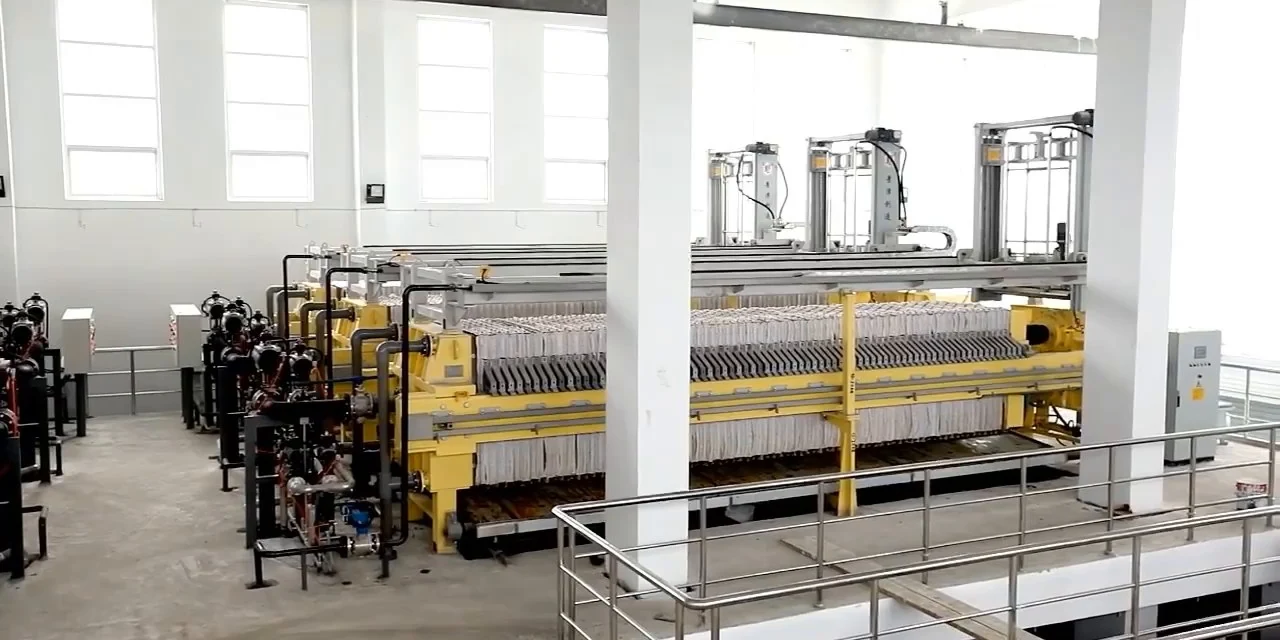

TBM slurry treatment plant
Bentonite / mixed face
Slurry shield drive with a treatment plant that follows the TBM flow through a mixed face.
- Treatment capacity
- 300 m³/h
- Cake moisture
- 35 – 45 % dry solids
- Filter press model
- 4 × membrane press, 1250 × 1250 mm
Configuration data
- Country
- [PROJECT COUNTRY]
- Location
- [PROJECT LOCATION]
- Application
- TBM slurry treatment
- Slurry type
- Bentonite / mixed face
- Treatment capacity
- 300 m³/h
- Solids concentration
- 10 – 30 % by weight
- Filter press model
- 4 × membrane press, 1250 × 1250 mm
- Filter area
- 480 m² total
- Cake moisture
- 35 – 45 % dry solids
- Project date
- Reference configuration
Equipment configuration
| Coarse separation | Vibrating screen, double deck with wash water |
|---|---|
| Desanding | Two-stage hydrocyclones · sand screw classifier |
| Dewatering | 4 × membrane filter press, 1250 × 1250 mm |
| Water recovery | Filtrate pump · buffer tank |
| Control | PLC with HMI and remote diagnostics |
Process flow
The sequence as it runs on site.
- 01ScreeningRemove coarse solids before the slurry enters the separation circuit.
- 02DesandingRecover the sand fraction with hydrocyclones and a sand screw.
- 03ConditioningDose flocculant and mix so the fines can be filtered.
- 04Filter pressDewater the conditioned slurry in the filter press.
- 05Water recoveryReturn clear filtrate to the slurry circuit.
Design figures
-
Design throughput
300 m³/h
-
Target cake
35 – 45 % dry solids
-
Filtrate reuse
Returned to the TBM feed tank
-
Redundancy
Duty/standby on pumps and dosing
