Industrial sludge dewatering
Process / wastewater sludge
Industrial sludge with a chemistry that set the cloth, the dose and the cycle.
- Treatment capacity
- 2 × 40 m³/h
- Cake moisture
- 22 – 30 % dry solids
- Filter press model
- 2 × automatic press, 1250 × 1250 mm
Configuration data
- Country
- [PROJECT COUNTRY]
- Location
- [PROJECT LOCATION]
- Application
- Industrial sludge dewatering
- Slurry type
- Process / wastewater sludge
- Treatment capacity
- 2 × 40 m³/h
- Solids concentration
- [SOLIDS CONCENTRATION]
- Filter press model
- 2 × automatic press, 1250 × 1250 mm
- Cake moisture
- 22 – 30 % dry solids
- Project date
- Reference configuration
Equipment configuration
| Sludge storage | Buffered sludge storage tank with mixer |
|---|---|
| Conditioning | Automatic flocculant dosing station · in-line mixer |
| Dewatering | 2 × automatic filter press, 1250 × 1250 mm |

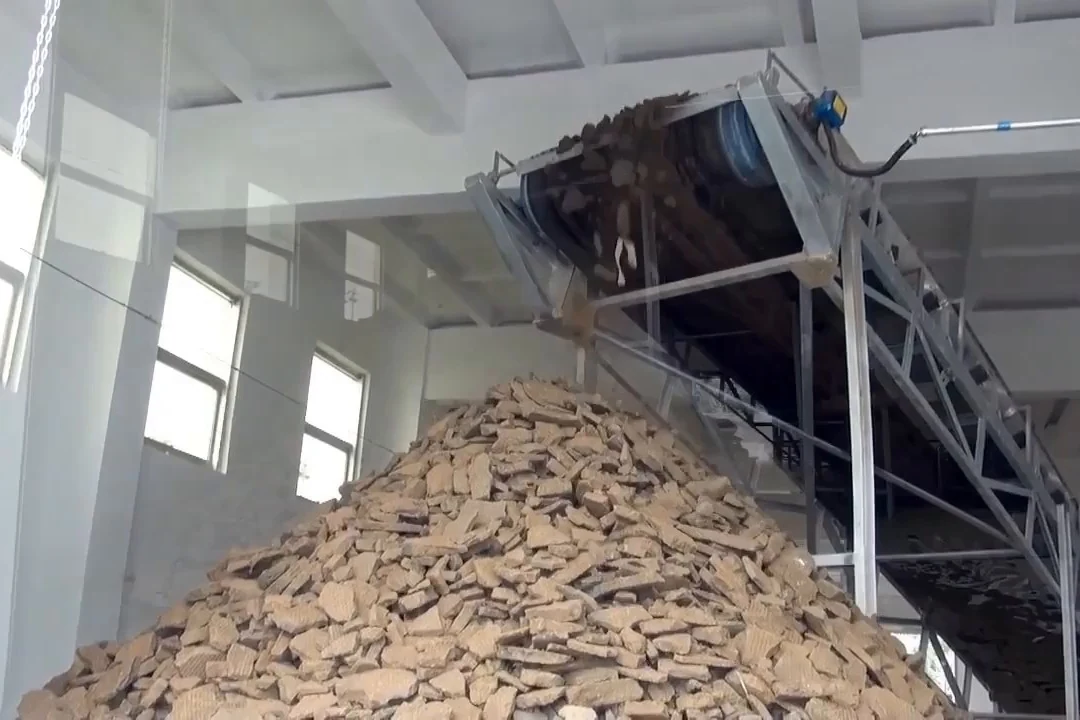

| Cake handling | Cake conveyor · skip |
| Control | PLC with HMI and remote diagnostics |
Process flow
The sequence as it runs on site.
- 01ScreeningRemove coarse solids before the slurry enters the separation circuit.
- 02DesandingRecover the sand fraction with hydrocyclones and a sand screw.
- 03ConditioningDose flocculant and mix so the fines can be filtered.
- 04Filter pressDewater the conditioned slurry in the filter press.
- 05Water recoveryReturn clear filtrate to the slurry circuit.
Design figures
-
Design throughput
2 × 40 m³/h
-
Target cake
22 – 30 % dry solids
-
Operator attention
One operator per shift
-
Plant arrangement
Two presses in the plant hall
